VS-GP100TS60SFPbF PRODUCT INFORMATION

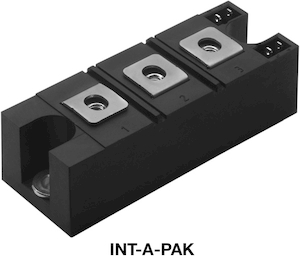

“Half Bridge” IGBT INT-A-PAK, (Trench PT IGBT), 100 A
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Trench PT IGBT technology
FRED Pt® anti-parallel diodes with fast recovery
Very low conduction losses

APPLICATIONS

Optimized for high current inverter stages (AC TIG welding machines)
Direct mounting to heatsink
Very low junction to case thermal resistance


Showing 1 to 6 of 6 entries
Document TypeTitleDescriptionShare
Application Notes
How to Design an Rg Resistor for a Vishay Trench PT IGBT
share
Application Notes
Mounting Instructions for INT-A-PAK Modules
share
Datasheet
“Half Bridge” IGBT INT-A-PAK, (Trench PT IGBT), 100 A
share
Package Drawings
INT-A-PAK IGBT
share
Product Literature
IGBT Power Modules: Featured Products
share
Product Literature
IGBT Power Modules (VS-GP100TS60SFPbF, VS-GP250SA60S, VS-GP300TD60S, and VS-GP400TD60S) for TIG Welding Machines
share
