VS-GP250SA60S PRODUCT INFORMATION

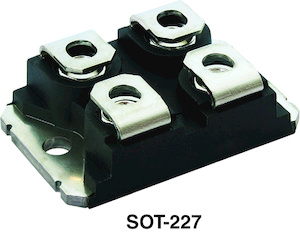

Insulated Gate Bipolar Transistor Trench PT IGBT, 650 V, 120 A Proprietary Vishay IGBT Silicon “L Series”
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Standard speed Trench PT IGBT
Fully isolated package
Very low internal inductance (≤ 5 nH typical)

APPLICATIONS

Optimized for high current inverter stages (AC TIG  welding machine)
Direct mounting to heatsink
Plug-in compatible with other SOT-227 packages
