VS-GP300TD60S PRODUCT INFORMATION

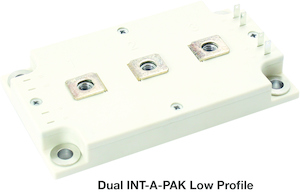

Dual INT-A-PAK Low Profile "Half Bridge" (Standard Speed IGBT), 300 A
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Trench PT IGBT technology
Low VCE(on)
Square RBSOA

APPLICATIONS

Increased operating efficiency
Performance optimized as output inverter stage for TIG welding machines
Direct mounting on heatsink


Showing 1 to 5 of 5 entries
Document TypeTitleDescriptionShare
Application Notes
Mounting Instructions for Dual INT-A-PAK Low Profile Modules
share
Application Notes
How to Design an Rg Resistor for a Vishay Trench PT IGBT
share
Datasheet
Dual INT-A-PAK Low Profile "Half Bridge" (Standard Speed IGBT), 300 A
share
Package Drawings
Dual INT-A-PAK Low Profile
share
Product Literature
IGBT Power Modules (VS-GP100TS60SFPbF, VS-GP250SA60S, VS-GP300TD60S, and VS-GP400TD60S) for TIG Welding Machines
