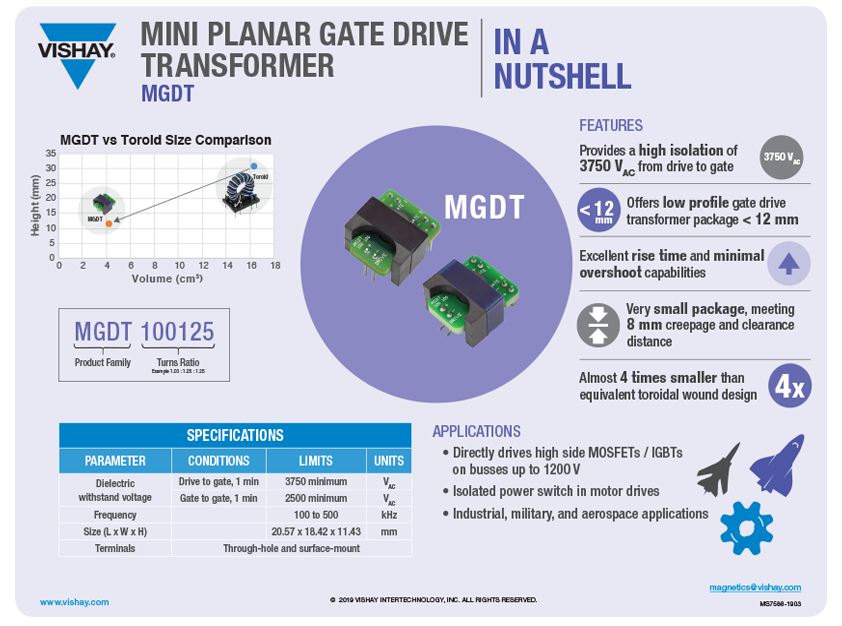

MGDT MINI PLANAR GATE DRIVE TRANSFORMER
The MGDT transformer series is a miniaturized gate drive transformer designed to save space in high power military, aerospace, industrial, and medical applications. Available with surface-mount or through-hole terminations and multiple turn ratios, the devices deliver MOSFET/IGBT gate power and timing signals simultaneously. The transformer directly drives high side MOSFETs/IGBTs on busses up to 1200 V. The MGDT transformer provides isolation to 3750VAC from drive to gate. Compared to traditional bobbin and toroidal winding technology, the transformers’ planar package — which meets or exceeds most safety agency requirements — occupies 40 % less board space and offers a 33 % lower profile and is the industry’s smallest to provide 8 mm creepage and clearance.
| Applications | Advantages / Benefits | |||
|---|---|---|---|---|
|
Dual active high power forward converters with multiple FETs that need isolation and fast response time for motor drives |
|
|||
|
High power half-bridge and full bridge converters with multiple FETs that need isolation and fast response time for motor drives |
|
