THIN FILM CHIP RESISTOR ARRAYS

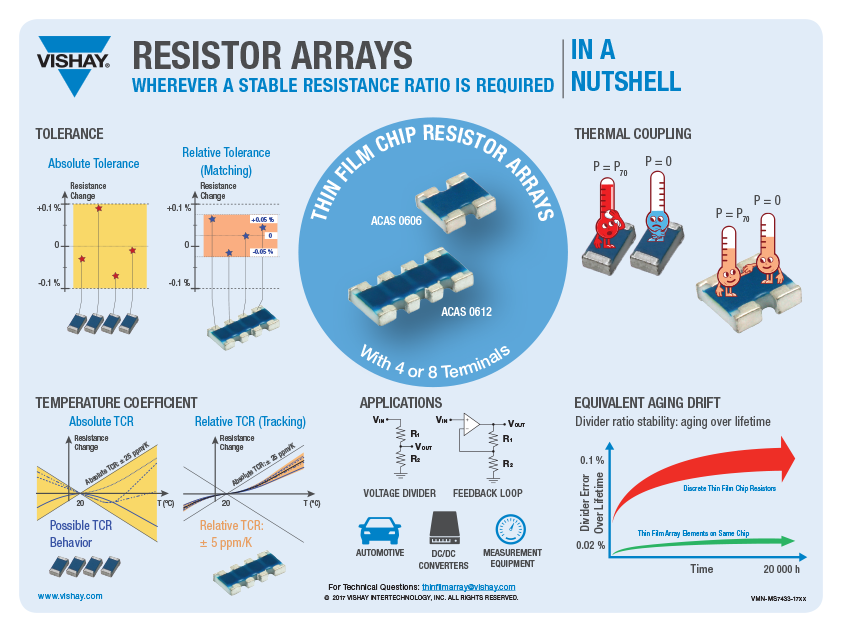

Vishay's ACAS AT series offers thin film chip resistor arrays with two or four resistive elements and individual resistance values. The combination of multiple resistive elements in one package allows for similar manufacturing conditions and thermal coupling of the resistors, guaranteeing tight relative properties that are essential in applications requiring a stable divider ratio.
The devices offer a relative temperature coefficient down to ± 5 ppm/K, relative tolerance down to ± 0.05 %, and an excellent relative long term stability of < 0.05 % for 1000 h operation at P70.
|Tight tolerance matching||Accurate resistance ratio|
|Tight temperature coefficient tracking||Temperature stable resistance ratio|
|Thermal coupling of resistive elements||Excellent relative long term stability|
|Product Portfolio||Capabilities and Custom Options|
|Did You Know?||Application Note: Increasing Accuracy With Thin Film Chip Resistor Arrays|
|Video: ACAS Vishay Thin Film Chip Resistor Arrays|
