CARBON FILM MELF RESISTORS

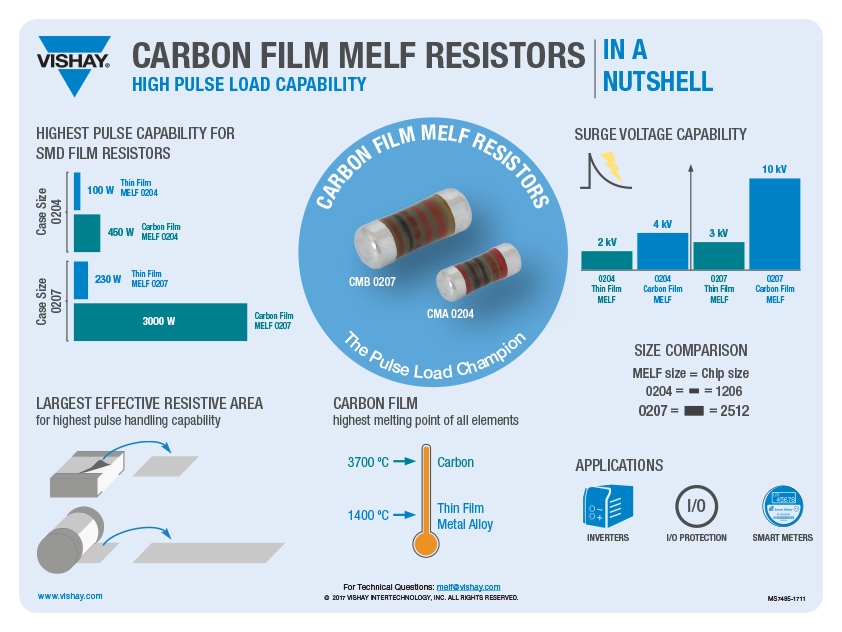

Vishay‘s CMA 0204 and CMB 0207 carbon film MELF resistors combine advanced carbon film technology and the largest resistive area per case size with an outstanding pulse load capability:

Up to 3000 W single pulse power
Up to 4 kV surge voltage capability (1.2/50 pulse)
ESD capability up to 16 kV

Carbon film MELF resistors allow designers to reduce component counts and save board space in pulse load applications and pulse protection circuits.

Advantages	Benefits
Advanced carbon film technology	Highest Pulse Load Capability for SMD resistors
High power rating up to 1 W	Reduction of component count / board space
High surge voltage capability	Reduction of component count / board space

ADDITIONAL INFORMATION
Product Portfolio	Capabilities and Custom Options
Did You Know?	3D Models
Application Notes Carbon Film MELF – Pulse Load Champion MELF Resistor Reliability	Video Pulse Handling Capabilities of MELF Resistors
