Active Discharge Circuit for 400 V Systems

Selected

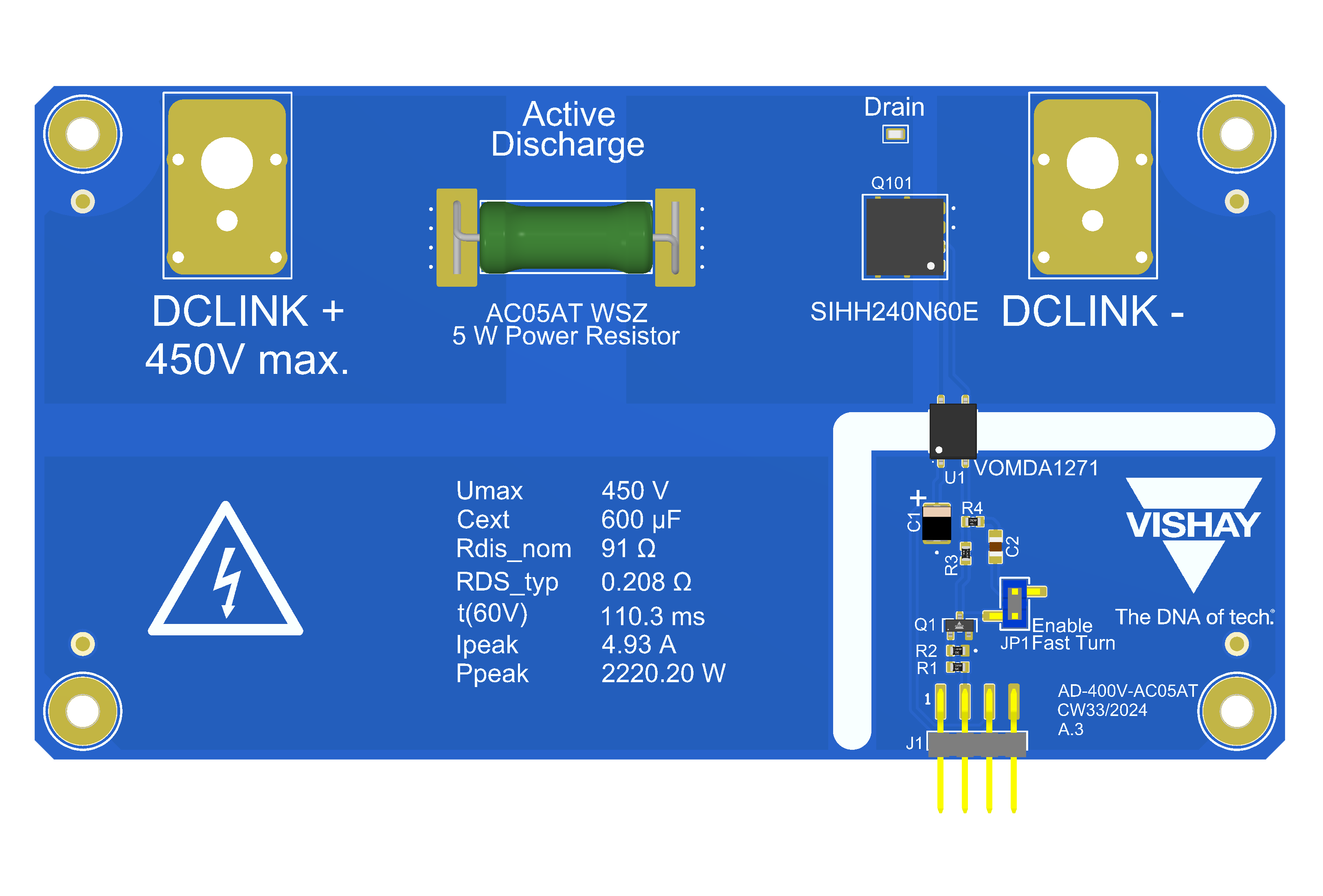

AD-400V-AC05AT

Thumbnail 0Thumbnail 1

Active discharge is a method of discharging stored energy in a capacitor (or any other energy-storing element) in a controlled manner. This allows the system voltage to reach a safe value within a certain amount of time, thereby preventing the risk of electrical shock. Active discharge is distinguished from passive discharge or bleed resistors in such, that the discharge process is faster and actively initiated and therefore leads highe efficiency of the system during normal operation.

The solution uses an SJ Si MOSFET, driven by a photovoltaic gate driver, to enable discharge of a 400 V system through a pulse-prove resistor and can be easily tailored to the exact requriements.

Reference Design Files

Reference Board

Datasheet

Active discharge is a method of discharging stored energy in a capacitor (or any other energy-storing element) in a controlled manner. This allows the system voltage to reach a safe value within a certain amount of time, thereby preventing the risk of electrical shock. Active discharge is distinguished from passive discharge or bleed resistors in such, that the discharge process is faster and actively initiated and therefore leads highe efficiency of the system during normal operation.

The solution uses an SJ Si MOSFET, driven by a photovoltaic gate driver, to enable discharge of a 400 V system through a pulse-prove resistor and can be easily tailored to the exact requriements.

Reference Design Files

Reference Board

Datasheet

Selected

AD-400V-AC05AT

Thumbnail 0Thumbnail 1

Reference

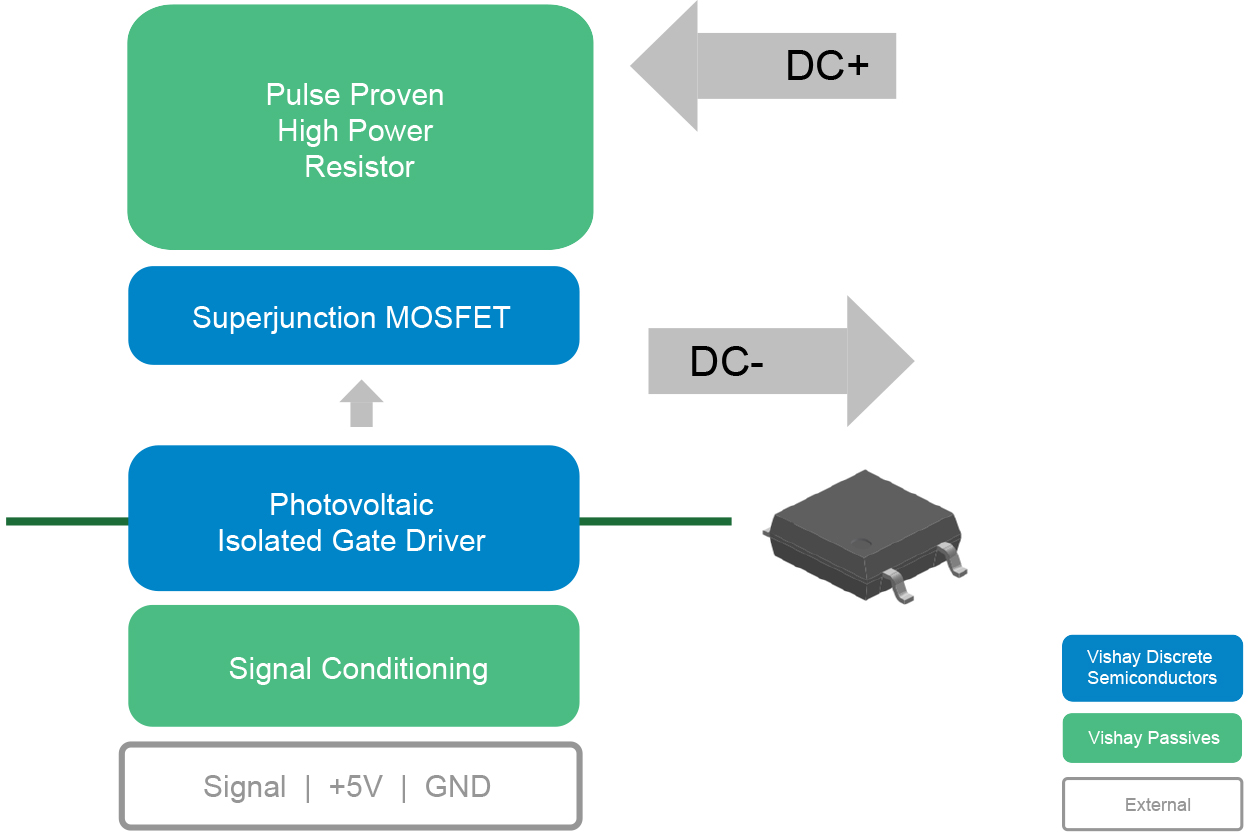

Functional Block Diagram

Slider

Features

High pulse load surface-mount wirewound resistors, carbon film MELF resistors, and thick film technology resistors

Low part counts isolated gate drive circuit without the need for an external power supply

Products

Download

All reference designs provided by Vishay Intertechnology, Inc. and its affiliates (collectively “Vishay”) are provided "as is". Vishay makes no warranties or representations with regard to the reference designs or use of the reference designs, express, implied or statutory, including accuracy or completeness. Vishay disclaims any warranty of title and any implied warranties of merchantability, fitness for a particular purpose, quiet enjoyment, quiet possession, and non-infringement of any third-party intellectual property rights with regard to Vishay’s reference designs or use thereof. Vishay shall not be liable for and shall not defend or indemnify buyers against any third-party infringement claim that relates to or is based on a combination of components provided in a Vishay reference design. In no event shall Vishay be liable for any actual, special, incidental, consequential or indirect damages, however caused, on any theory of liability and whether or not Vishay has been advised of the possibility of such damages, arising in any way out of Vishay reference designs or buyer’s use of Vishay reference designs.
