Virtual Board for Vishay NTC Thermistors

Components available in different wire gages, lengths, and with or without insulation.

For more information or possible customization of every product displayed on this board, please contact nlr@vishay.com.
Wire Gage Lead Wire Insulator
None ETFE PEEK PTFE PVC
AWG32   Ag-plated, Ni or NiFe Ag-plated, NiFe (also 185 °C)
AWG30 Sn-plated, Ni Sn-plated, Ni Ag-plated, Ni   Sn-plated, Cu
AWG28 Sn-plated, Ni     Ag-plated, Cu
AWG26 Sn-plated, Ni Ag-plated, Cu   Ag-plated, Cu
AWG24 Sn-plated, Ni       Sn-plated, Cu
AWG23 Sn-plated, Cu

Monostranded
Length: 0.4 in up to 2 in
10 mm up to 50 mm


Monostranded
Length: 1.5 in up to 9 in
38 mm up to 228 mm


Multistranded
Length: 1.5 in up to 9 in
38 mm up to 228 mm


Multistranded
Length: 2 in up to 150 in
50 mm up to 3810 mm


LEAD WIRE INSULATOR
ETFE = Ethylene Tetrafluoroethylene
PEEK = Polyether Ether Ketone
PTFE = Polytetrafluoroethylene
PVC = Polyvinyl Chloride
WIRE GAGE MONOSTRANDED MULTISTRANDED
AWG32 1 x 0.2 mm not available
AWG30 1 x 0.25 mm 7 x 0.101 mm
AWG28 1 x 0.3 mm 7 x 0.127 mm or 19 x 0.08 mm
AWG26 1 x 0.4 mm 7 x 0.16 mm
AWG24 1 x 0.5 mm 11 x 0.16 mm twisted
AWG23 1 x 0.58 mm not available
AWG22 not available on request

×

Leaded Thermistors

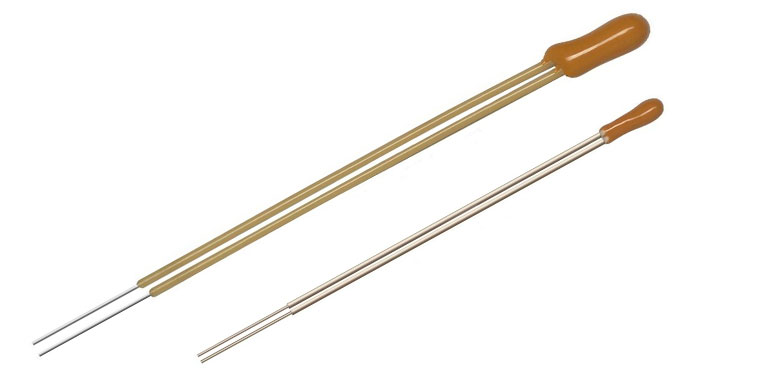

NTCLE300 (Top), NTCLE305 (Bottom)

NTCLE300 NTCLE305

The NTCLE300 (bead diameter < 2.4 mm) and the smaller NTCLE305 (bead diameter < 1.6 mm) are fast and accurate components. They feature two ETFE-insulated solid nickel wires.

NTCLE305 Datasheet ›

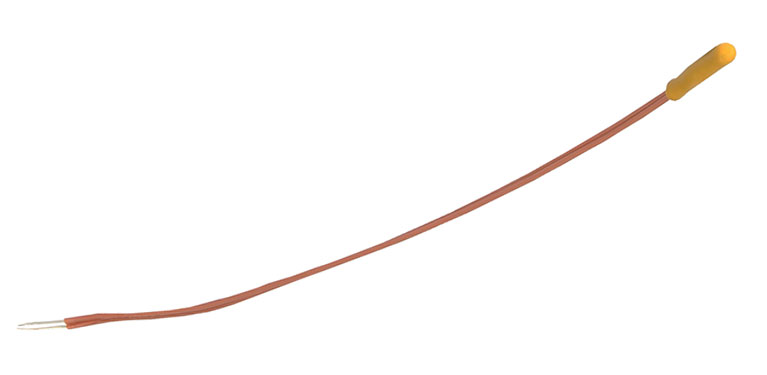

NTCLE315

NTCLE315

The NTCLE315 offers the smallest bead size available (1.6 mm). It features two ETFE-insulated, solid 0.2 mm NiFe wires (with the smallest temperature gradient available on the market).

×

Leaded Thermistors

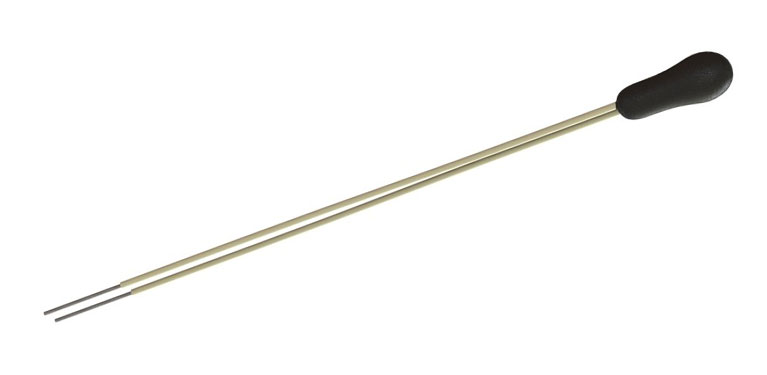

NTCLE350

NTCLE350

The NTCLE350 is a high temperature rated (185 °C) device, with small dimensions (bead diameter of 2.4 mm) and two PEEK-insulated, solid 0.2 mm NiFe wires with the lowest temperature gradient available on the market.

NTCLE350 Datasheet ›

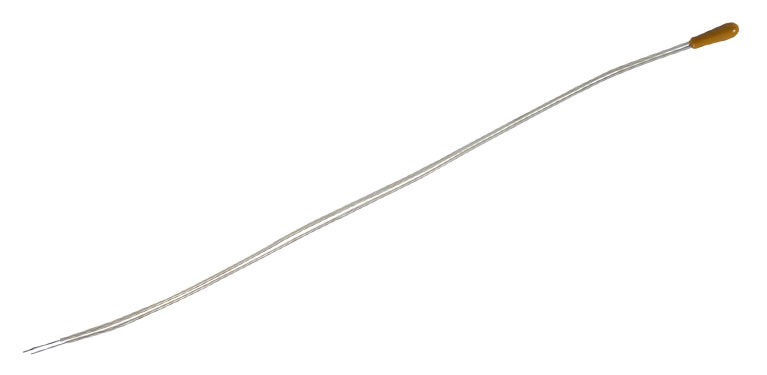

NTCLE317

NTCLE317

The NTCLE317 is the fastest Vishay thermistor (bead diameter 1.6 mm). It features two PEEK-insulated, solid 0.2 mm NiFe wires, with the lowest temperature gradient available on the market.

NTCLE317 Datasheet ›
×

Leaded Thermistors
NTCLE202

NTCLE202

The NTCLE202 is a small thermistor (bead diameter < 2.4 mm), with two non-insulated, 0.25 mm solid nickel wires.

×

Leaded Thermistors
NTCLE300 (Top), NTCLE305 (Bottom)

NTCLE300 NTCLE305

The NTC300 (bead diameter < 2.4 mm) and the smaller NTCLE305 (bead diameter < 1.6 mm) are fast and accurate components. They feature two ETFE-insulated solid nickel wires.

NTCLE300 Datasheet ›
×

Leaded Thermistors

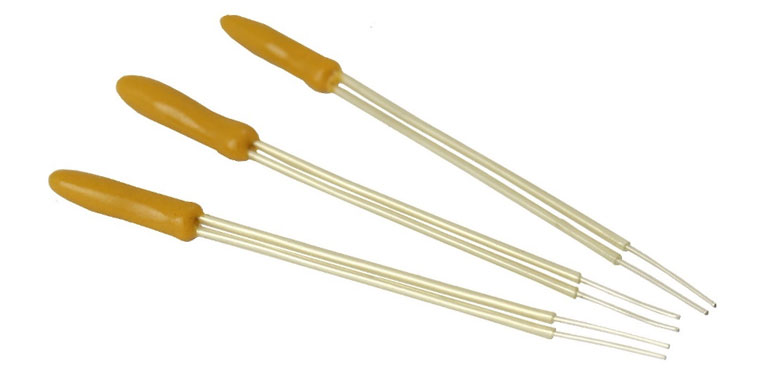

NTCLE301

NTCLE301

The NTCLE301's design offers AWG #30 silver-plated thin nickel wires and small bead dimensions (2.4 mm max.) for fast and precise temperature sensing.

NTCLE301 Datasheet ›
×

Leaded Thermistors

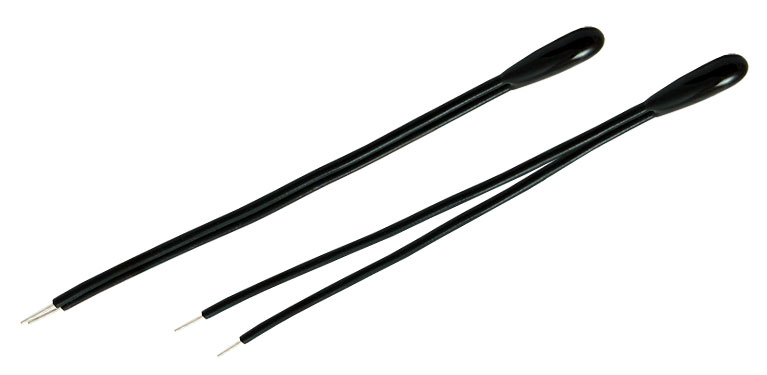

NTCLE413 (Top) NTCLE428 (Bottom)

NTCLE413 NTCLE428

The NTCLE413 consists of a small NTC chip soldered between stranded AWG #30, 105 °C resistant, PVC (UL2651) twin wires.

The NTCLE428 consists of a small NTC chip soldered between stranded AWG #30, PVC 105 °C single hook-up wires (in accordance with UL1061).

NTCLE413 Datasheet › NTCLE428 Datasheet ›
×

Leaded Thermistors

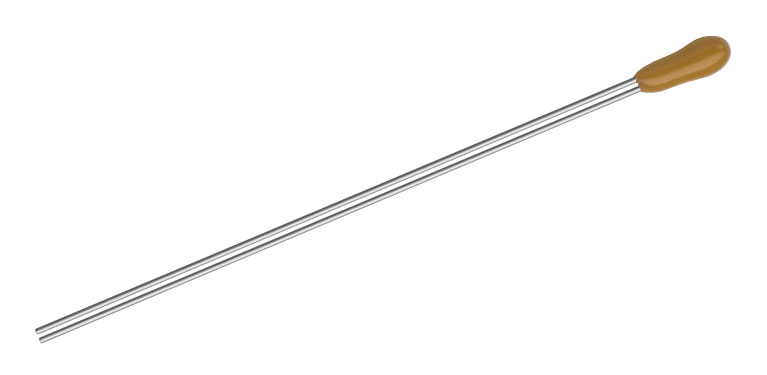

NTCLE201

NTCLE201

The NTCLE201 is a small thermistor (bead diameter < 2.4 mm) with two non-insulated, 0.3 mm solid nickel wires.

NTCLE201E3...SB Datasheet ›
×

Leaded Thermistors

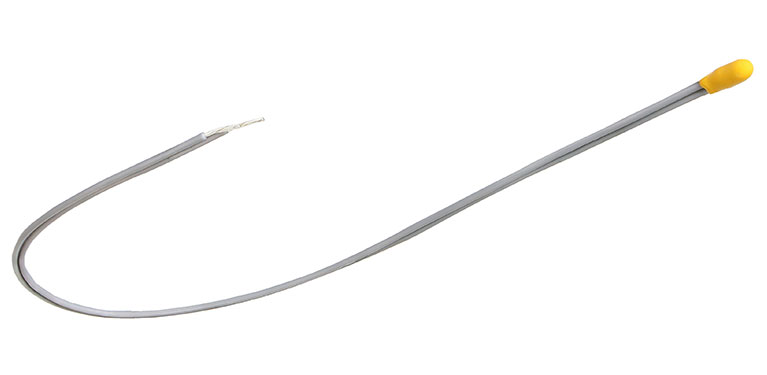

NTCLE306

NTCLE306

This component features AWG #28 (19 mm x 0.08 mm) silver-plated copper (e4) wire with PTFE insulation. It is available as custom option.

Ideal for the following connectors:

  • MOLEX 51021-0200 (85 °C) with 1.25 mm pitch
  • MOLEX 43645-0200 (105 °C) with 3 mm pitch
  • MOLEX 35507-0200 (105 °C) with 2 mm pitch
  • JST ZHR-2 ZHR-4 (85 °C and 105 °C) with 1.5 mm pitch

This connector list is given for information only. Vishay is not affiliated with any of the named companies. Vishay cannot ensure availability of these materials.

×

Leaded Thermistors

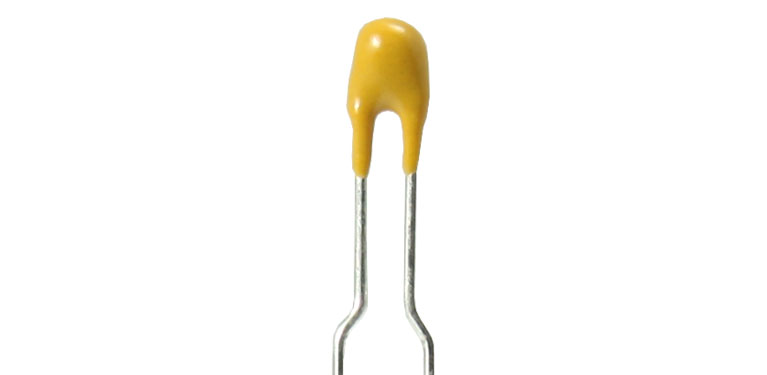

NTCLE213E3.....B0 / T (Automotive Range)

NTCLE213E3

The NTCLE213E3 model is a mini chip (2.5 mm max. for bead) AEC-Q200 qualified component for automotive applications. R25 tolerances are as low as ± 1 % and the components are available in bulk or on tape and reel. The device features two solid 0.4 mm tinned nickel wires.

NTCLE213E3 Datasheet ›

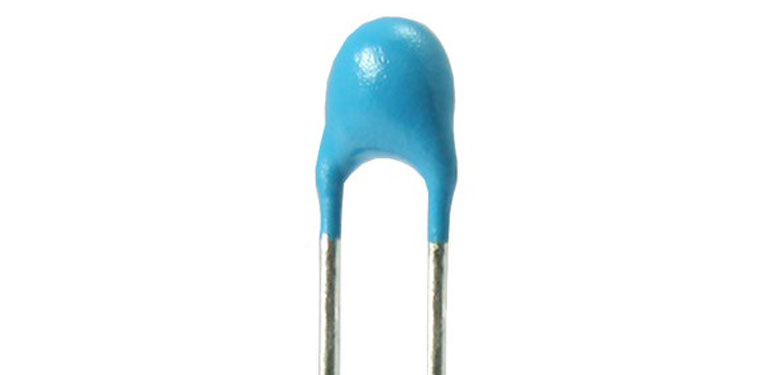

NTCLE203...B0 Standard Range (Non-Automotive)

NTCLE203E3

The NTCLE203E3 provides a cost-effective model with high accuracy. It features two solid 0.4 mm tinned nickel wires and is available in bulk.

NTCLE203E3 Datasheet ›
×

Leaded Thermistors

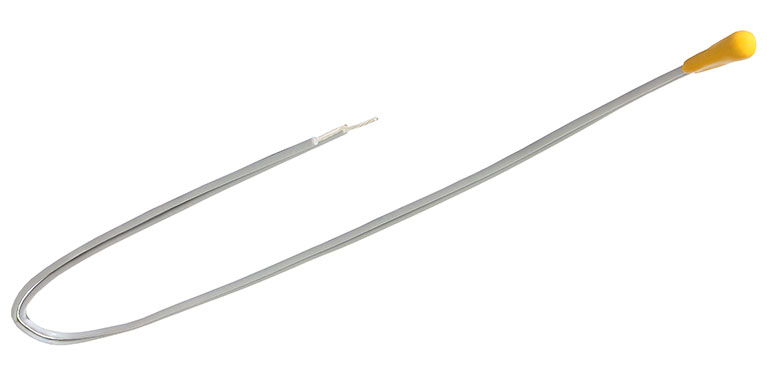

NTCLE313

NTCLE313

This component features ETFE-insulated, Ag-plated, 7-strand Cu 7 (AWG26) 600 V. It is available as a custom option.

Ideal for the following connectors:

  • JST ZHR-2 and ZHR-4 (85 °C and 105 °C) with 1.5 mm pitchh
  • JST 2P-SAN (85 °C) with 2 mm pitch
  • MOLEX 43645-0200 (105 °C) with 3 mm pitch
  • MOLEX 35507-0200 (105 °C) with 2 mm pitch
  • TE 179228-2 (105 °C) with 2 mm pitch

This connector list is given for information only. Vishay is not affiliated with any of the named companies. Vishay cannot ensure availability of these materials.

×

Leaded Thermistors

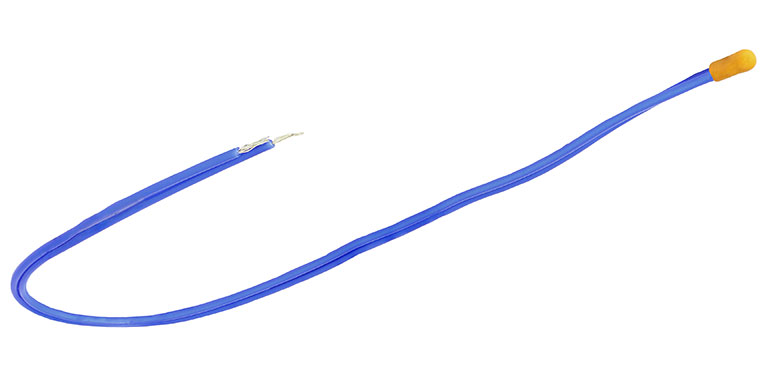

NTCLE308

NTCLE308

This component features PTFE-insulated, Ag-plated, 7-strand Cu 0.4 mm (AWG26) wire (1 kV). It is available as a custom option.

Ideal for the following connectors:

  • JST 2P-SAN (85 °C) with 2 mm pitch
  • MOLEX 43645-0200 (105 °C) with 3 mm pitch
  • MOLEX 35507-0200 (105 °C) with 2 mm pitch
  • TE 179228-2 (105 °C) with 2 mm pitch
  • MOLEX 51103-0200 (105 °C) with 2.5 mm pitch

This connector list is given for information only. Vishay is not affiliated with any of the named companies. Vishay cannot ensure availability of these materials.

×

Leaded Thermistors

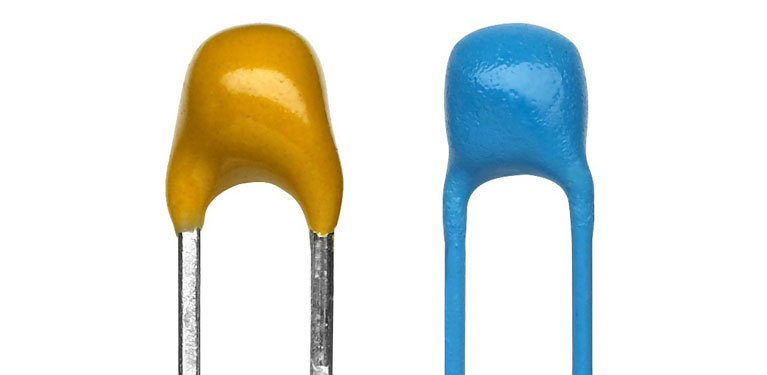

NTCLE203…..SB0 (Automotive Range)

NTCLE203…..SB0

The NTCLE203...SB0 is an AEC-Q200 qualified model, available in most classical R25 values with an accuracy of ± 0.5 °C. It features an insulation coating, is available in bulk, and can be customized for particular electrical or mechanical requirements.

NTCLE203...SB0 Datasheet ›
×

Leaded Thermistors

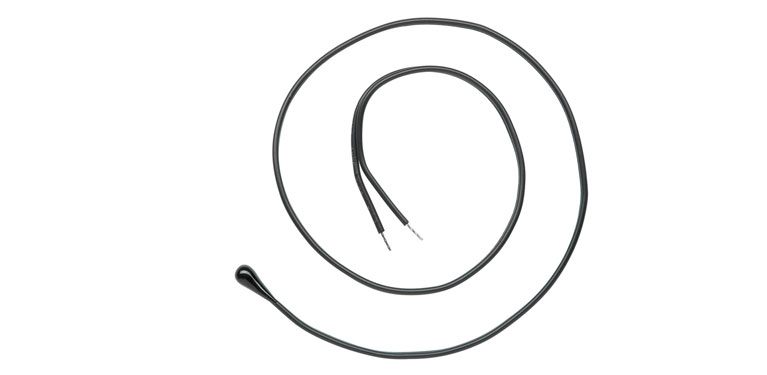

NTCLE400

NTCLE400

These sensors consist of a small NTC chip reflow soldered between two AWG #24 UL-2468 style wires.

Ideal for the following connectors:

  • JST 2P-SAN (85 °C) with 2 mm pitch
  • MOLEX 43645-0200 (105 °C) with 3 mm pitch
  • MOLEX 35507-0200 (105 °C) with 2 mm pitch
  • TE 179228-2 (105 °C) with 2 mm pitch
  • MOLEX 51103-0200 (105 °C) with 2.5 mm pitch

This connector list is given for information only. Vishay is not affiliated with any of the named companies. Vishay cannot ensure availability of these materials.

NTCLE400 Datasheet ›
×

Leaded Thermistors

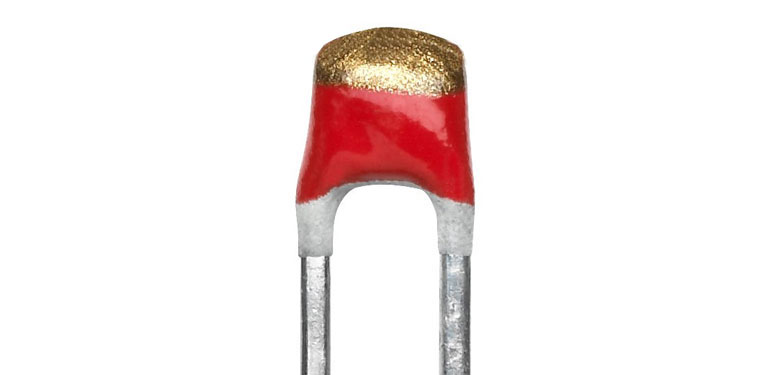

NTCLE100E3....B0 / T1 / T2

NTCLE100E3

The NTCLE100E3 provides the most cost-effective thermistor model with reasonable accuracy. It features two solid 0.58 mm tinned copper wires and is available in bulk or on tape and reel.

NTCLE100E3 Datasheet ›
