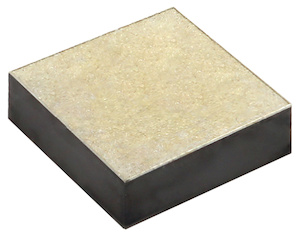

NTCC200E4, NTCC300E4 PRODUCT INFORMATION

Leadless NTC Thermistor Die Suitable For Wire Bonding
vsh-img-product-image

FEATURES

Flat chip contacted top and bottom (gold: NTCC300E4 series or silver: NTCC200E4 series)
Green thermistor - does not use RoHS exemptions
Wide temperature range from -55 °C to +175 °C

APPLICATIONS

High temperature sensing, control and compensation. E.g. IGBT modules (inverters in EV and HEV vehicles)
IC and semiconductor protecting
DC/AC power inverters and HIC overheat protecting
