SMD PTC - Nickel Thin Film Linear Thermistors
vsh-img-product-image

FEATURES

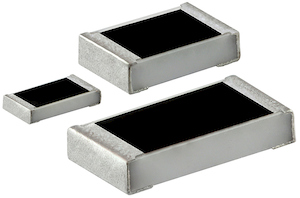

Alumina substrate base with nickel based PTC thin film element
0603, 0805, and 1206 sizes available
Available in tape and reel packaging
