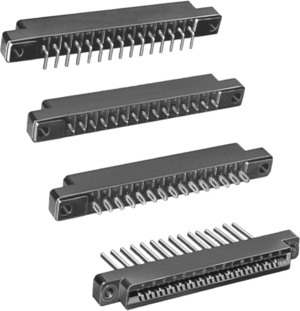

EBT156 PRODUCT INFORMATION

Edgeboard Connectors, Single Readout, Dip Solder, Eyelet and Wire Wrap™ Termination
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

0.156" (3.96 mm) C-C
Modified tuning fork contacts have chamfered lead-in to reduce wear on printed circuit board contacts without sacrificing contact pressure and wiping action
Accepts PC board thickness of 0.054" to 0.070" (1.37 mm to 1.78 mm)

APPLICATIONS

For use with 0.062" (1.57 mm) printed circuit boards requiring an edgeboard type connector on 0.156" (3.96 mm) centers
