IL30, ILD55, ILQ30, ILQ31, ILQ55 PRODUCT INFORMATION

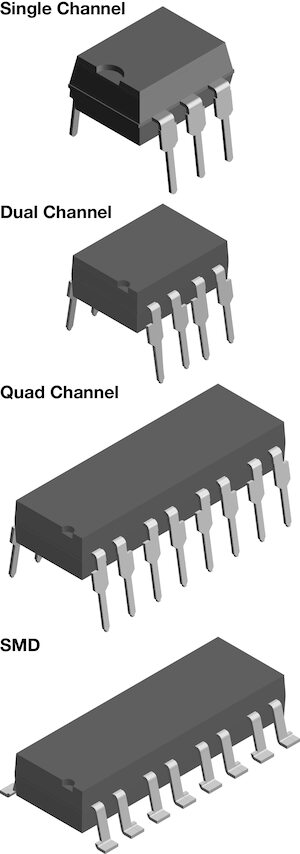

Optocoupler, Photodarlington Output, (Single, Dual, Quad Channel)
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

125 mA load current rating
Fast rise time, 10 µs
Fast fall time, 35 µs

APPLICATIONS

TheIL30 single, ILD55 dual, and ILQ30, ILQ31, ILQ55 quad are optically coupled isolators with gallium arsenide infrared emitters and silicon photodarlington sensors. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits, with no crosstalk between channels. These optocouplers can be used to replace reed and mercury relays with advantages of long life, high speed switching and elimination of magnetic fields.
TheILD55 is designed to reduce board space requirements in high density applications.


If your part number is not listed, please contact your sales office

Showing 1 to 9 of 9 entries


Part NumberRoHS-CompliantLead (Pb)-FreeMSL DesignationDevice Termination Plating FinishHalogen-FreeGREEN
ILQ31YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILQ55YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
IL30YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILD55-X009YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILQ30YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILD55-X007YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILQ55-X009TYesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILQ55-X009YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
ILD55YesTotally Lead FreeFloor Life-UnlimitedSnNoNo
