Automotive

Battery Management System

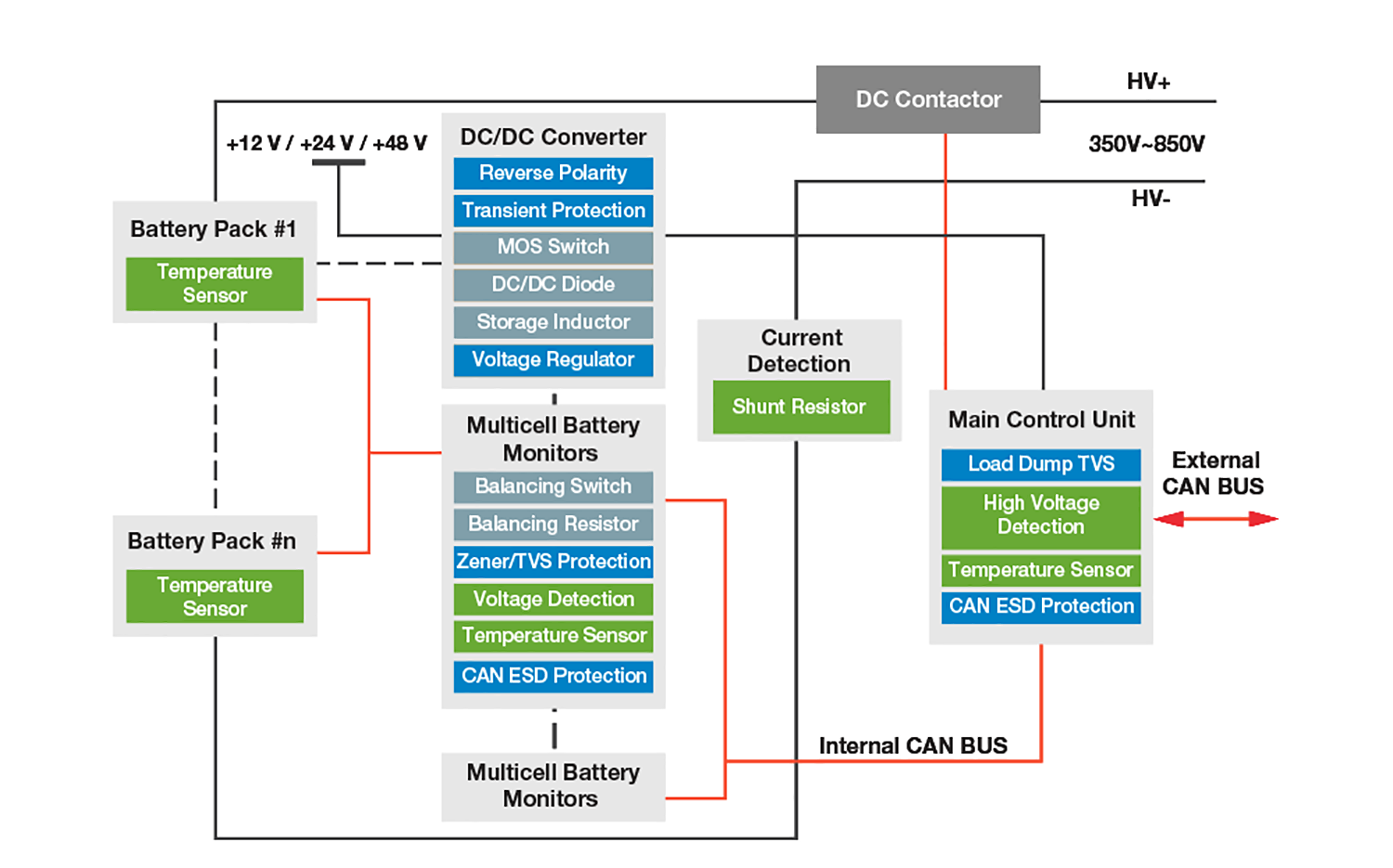

ApplicationTemperature SensorTemperature SensorReverse Polarity ProtectionTransient protectionMOS switchDC/DC DiodeStorage InductorVoltage RegulatorBalancing SwitchBalancing ResistorZener/TVS ProtectionVoltage DetectionTemperature SensorCAN ESD ProtectionShunt ResistorLoad Dump TVSCAN ESD ProtectionTemperature SensorHigh Voltage Detection
Recommended Parts for Temperature Sensor

NTC

x

Recommended Parts for Temperature Sensor

NTC

x

Recommended Parts for Reverse Polarity Protection

Schottky diodes

x

Recommended Parts for Transient protection

Load dump TVS

TVS Protection

x

Recommended Parts for MOS switch

MOSFET

x

Recommended Parts for DC/DC Diode

Schottky diodes

x

Recommended Parts for Storage Inductor

Power Inductors

x

Recommended Parts for Voltage Regulator

Optocoupler

x

Recommended Parts for Balancing Switch

MOSFET

x

Recommended Parts for Balancing Resistor

Resistor

x

Recommended Parts for Zener/TVS Protection

TVS Protection

Zener Diode

x

Recommended Parts for Voltage Detection

Resistor

x

Recommended Parts for Temperature Sensor

NTC

x

Recommended Parts for CAN ESD Protection

CAN ESD Protection

x

Recommended Parts for Shunt Resistor

Power Metal Strip

x

Recommended Parts for Load Dump TVS

Load Dump TVS

x

Recommended Parts for CAN ESD Protection

CAN ESD Protection

x

Recommended Parts for Temperature Sensor

NTC

x

Recommended Parts for High Voltage Detection

Resistor

x

Vishay Components Used

  • Power MOSFETS
  • CAN ESD Protection
  • Load Dump TVS
  • TVS Protection
  • Thermistors NTC
  • Power Inductors
  • Shunt Resistors
  • Thin/Thick Resistors
  • Schottky Diodes
  • Zener Diodes
Signal
Power
Power
Sensor
Protection
BMS (Battery Management System) is important electronic control unit for EV/HEV vehicle, which including battery monitor and battery balancing units. In multi-battery packs no two cells are identical, they are varying in cell capacity, self discharge, impedance, temperature characteristics and varying cell aging. These differences in general increase over lifetime and damage batteries. Two types batteries balancing method are used, passive balancing and active balancing. For passive balancing, the discharge current creates power dissipation in the balancing resistor, the dissipated energy is a loss of energy to reducing the capacity of the battery. the generated heat will warm up the battery. For active balancing, the batteries charge is transferred from cells to their neighbor cells, using low ESR MOSFET as power switch to reduce energy loss, the capacity of the battery will be improved. For the application, Vishay offers you a broad portfolio of solutions. With standard devices like MOSFETs, TVS, Schottky Diodes, Zener & CAN ESD Diodes, Shunt Resistors, Power Inductors as well as with temperature sensor NTC components.
