Vishay SensorXplorer Sensor Boards

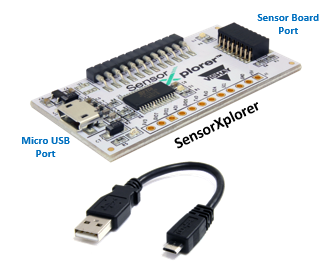

Will one of Vishay's sensors work in your application? Find out using Vishay’s sensor evaluation boards. Each sensor board can be used together with the SensorXplorer board.The SensorXplorer boards acts as a USB to I2C interface between Vishay's freely available software modules and the sensor boards. The sensor boards also have test pins for the I2C interface, allowing you to connect them to your own platform.

An overview of the available sensor boards and software module downloads can be found in the below tables.

SENSOR PRODUCTS SENSOR BOARDS CHECK INVENTORY DOWNLOADS
SOFTWARE MODULES BOARD FILES
SensorXplorer board and micro-USB cable applicable to following products
SENSORXPLORER
SensorXplorer Software Module SensorXplorer Installation Guide & Board File
AMBIENT LIGHT
VEML6030 VEML6030-SB VEML6030-SB Software Module VEML6030-SB Board File
VEML6031X00 VEML6031X00-SB VEML6031X00-SB Software Module VEML6031X00-SB Board File
VEML6035 VEML6035-SB VEML6035-SB Software Module VEML6035-SB Board File
PROXIMITY
VCNL36687S VCNL36687S-SB VCNL36687S-SB Software Module  VCNL36687S-SB Board File
VCNL36826S VCNL36826S-SB VCNL36826S-SB Software Module  VCNL36826S-SB Board File
PROXIMITY AND AMBIENT LIGHT
VCNL4020 VCNL4020-SB VCNL4020-SB Software Module  VCNL4020-SB Board File
VCNL4030X01 VCNL4030X01-SB VCNL4030X01-SB Software Module VCNL4030X01-SB Board File
VCNL4040 VCNL4040-SB VCNL4040-SB Software Module VCNL4040-SB Board File
COLOR
VEML3328 VEML3328-SB VEML3328-SB Software Module VEML3328-SB Board File
LONG DISTANCE PROXIMITY
VCNL4200 VCNL4200-SB VCNL4200-SB Software Module VCNL4200-SB Board File
GESTURE
VCNL4035X01 VCNL4035X01-SB VCNL4035X01-SB Software Module VCNL4035X01-SB Board File
VCNL4035X01-GES-SB VCNL4035X01-GES-SB Gesture Software Module VCNL4035X01-GES-SB Board File
