eFuse 400 Top View

Thumbnail 0Thumbnail 1

With the steady increase in high voltage eMobility applications semiconductor-based resettable fuses are quickly replacing mechanical relays/contactors and traditional non-resettable fuses. The eFuse concept is an innovative new trend for protecting both the user and the hardware in high voltage/power applications.

In this new reference design, an eFuse featuring SiC MOSFETs and a VOA300 optocoupler was designed to handle continuous power up to 40 kW. It has been designed to operate continuously at full power with less than 30 W of losses and no active cooling, and also features a preload function, continuous current monitoring and overcurrent protection (with shutdown in less than 2.5 µs).

Reference Design Files

White Paper

With the steady increase in high voltage eMobility applications semiconductor-based resettable fuses are quickly replacing mechanical relays/contactors and traditional non-resettable fuses. The eFuse concept is an innovative new trend for protecting both the user and the hardware in high voltage/power applications.

In this new reference design, an eFuse featuring SiC MOSFETs and a VOA300 optocoupler was designed to handle continuous power up to 40 kW. It has been designed to operate continuously at full power with less than 30 W of losses and no active cooling, and also features a preload function, continuous current monitoring and overcurrent protection (with shutdown in less than 2.5 µs).

Reference Design Files

White Paper

Selected

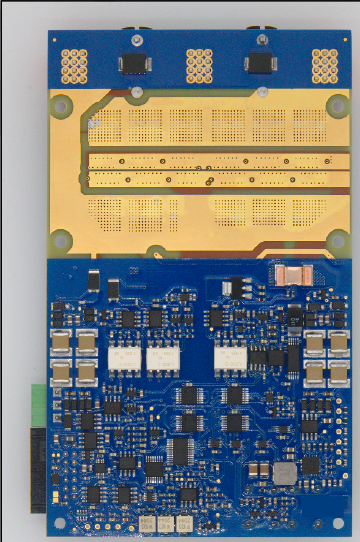

eFuse 400 Top View

Thumbnail 0Thumbnail 1

Reference

400 VDC 100 A Bidirectional eFuse

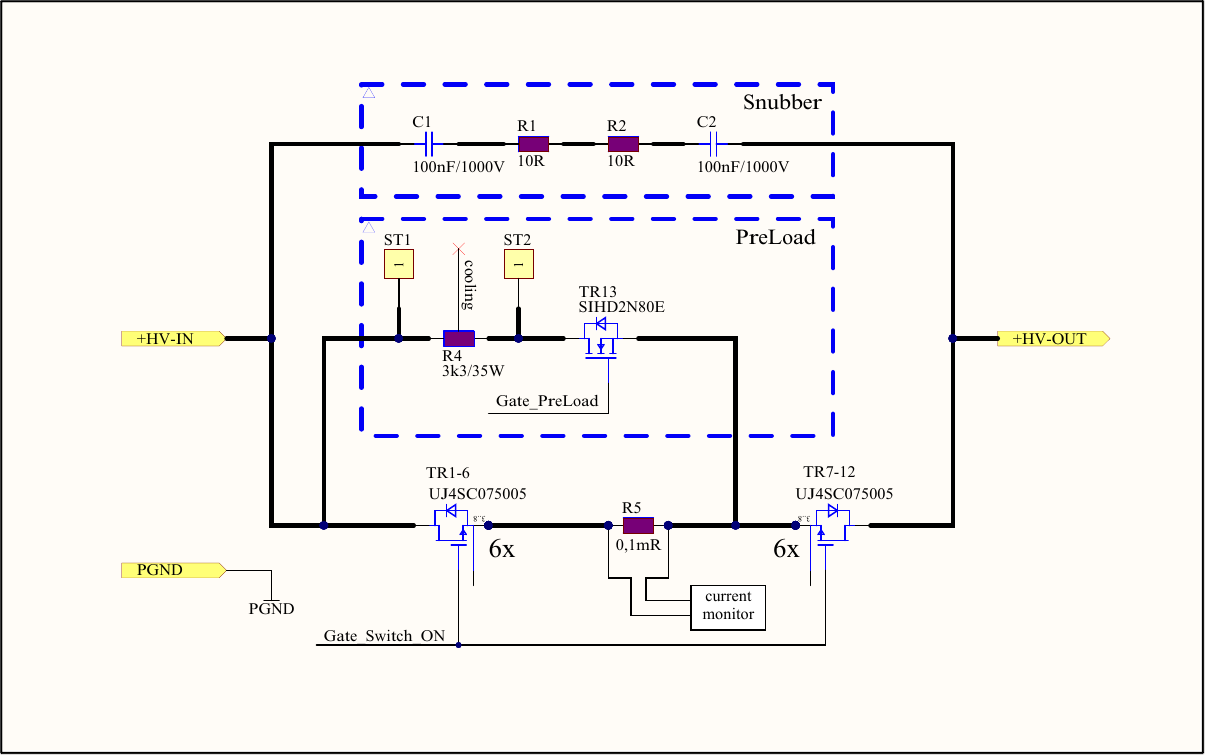

Schematic Design

Slider

Features

Ultra-Fast Overcurrent Protection

Optimized System Efficiency

Seamless System Recovery

Products

Download
