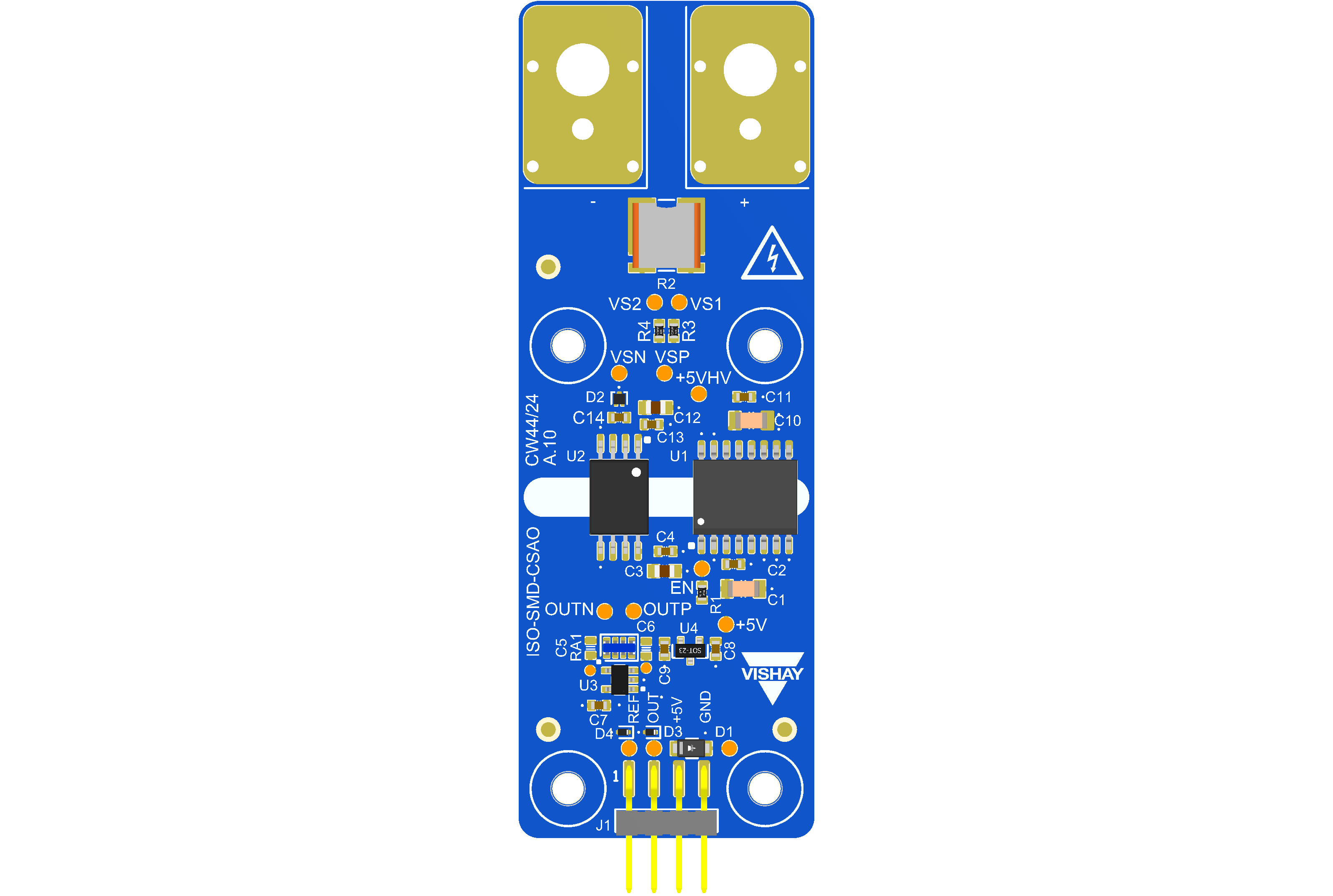

Isolated Busbar / SMD Current Sensor with Analog Output

Selected

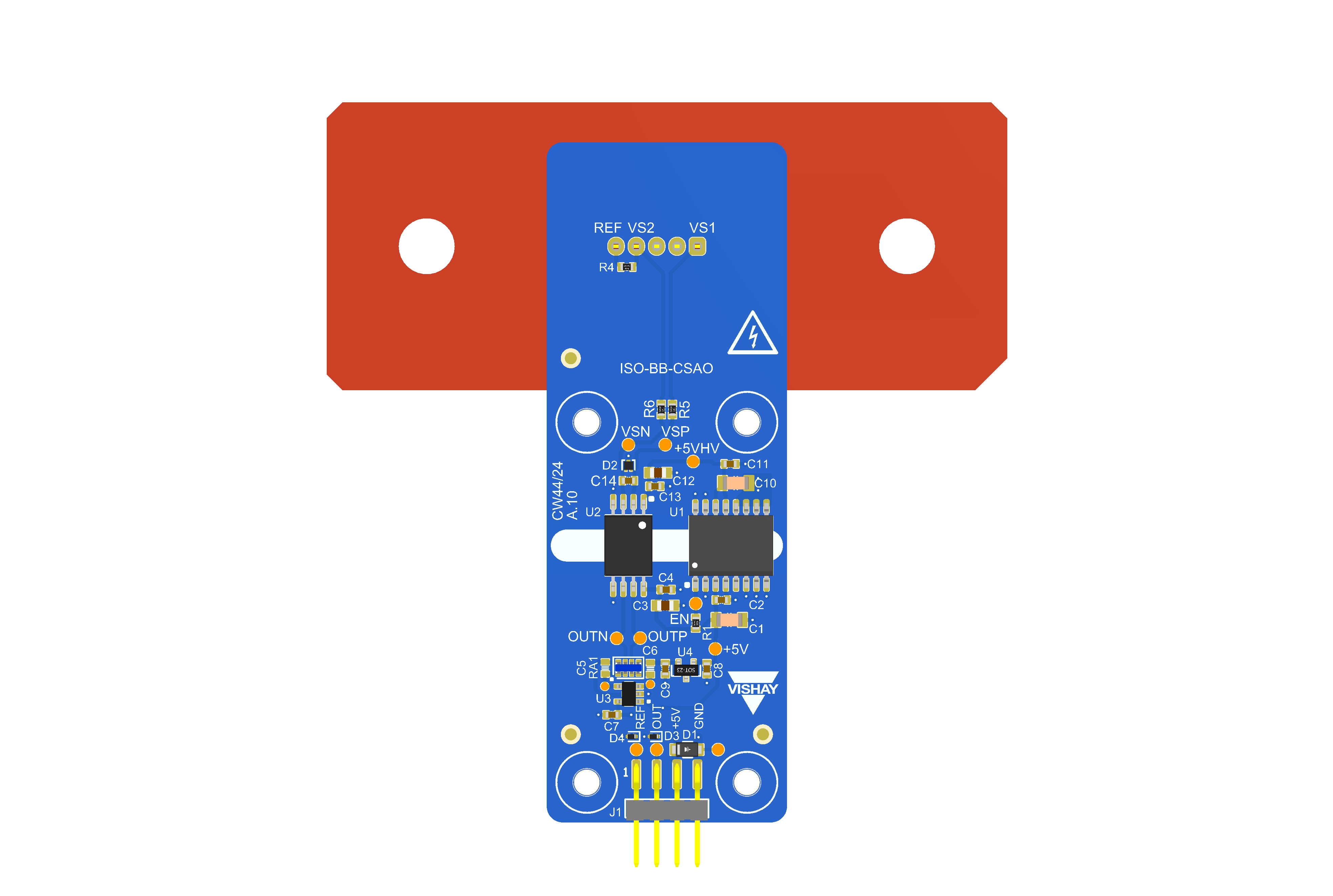

ISO-BB-CSAO

Thumbnail 0Thumbnail 1

This reference design focuses on the current sensing solutions used in high voltage applications, in which an isolated current sensing circuit is a must.

The measured current goes through a low TCR shunt resistance - the WSBE and WSL are explored in this application. The voltage drop across the shunt resistance is fed to a high performance differential output isolated amplifier, which in this case is the VIA0050DD. The VIA0050DD has a linear differential range of ± 50 mV. The differential output voltage between OUT and OUT is ± 2.05 V. This differential output is converted to a single-ended output, providing an output in the range of 0 V to 2.5 V (OUT to GND), which is ready to be interfaced by a single-ended ADC or multimeter.

Reference Design Files

Reference Board

Datasheet

This reference design focuses on the current sensing solutions used in high voltage applications, in which an isolated current sensing circuit is a must.

The measured current goes through a low TCR shunt resistance - the WSBE and WSL are explored in this application. The voltage drop across the shunt resistance is fed to a high performance differential output isolated amplifier, which in this case is the VIA0050DD. The VIA0050DD has a linear differential range of ± 50 mV. The differential output voltage between OUT and OUT is ± 2.05 V. This differential output is converted to a single-ended output, providing an output in the range of 0 V to 2.5 V (OUT to GND), which is ready to be interfaced by a single-ended ADC or multimeter.

Reference Design Files

Reference Board

Datasheet

Selected

ISO-BB-CSAO

Thumbnail 0Thumbnail 1

Reference

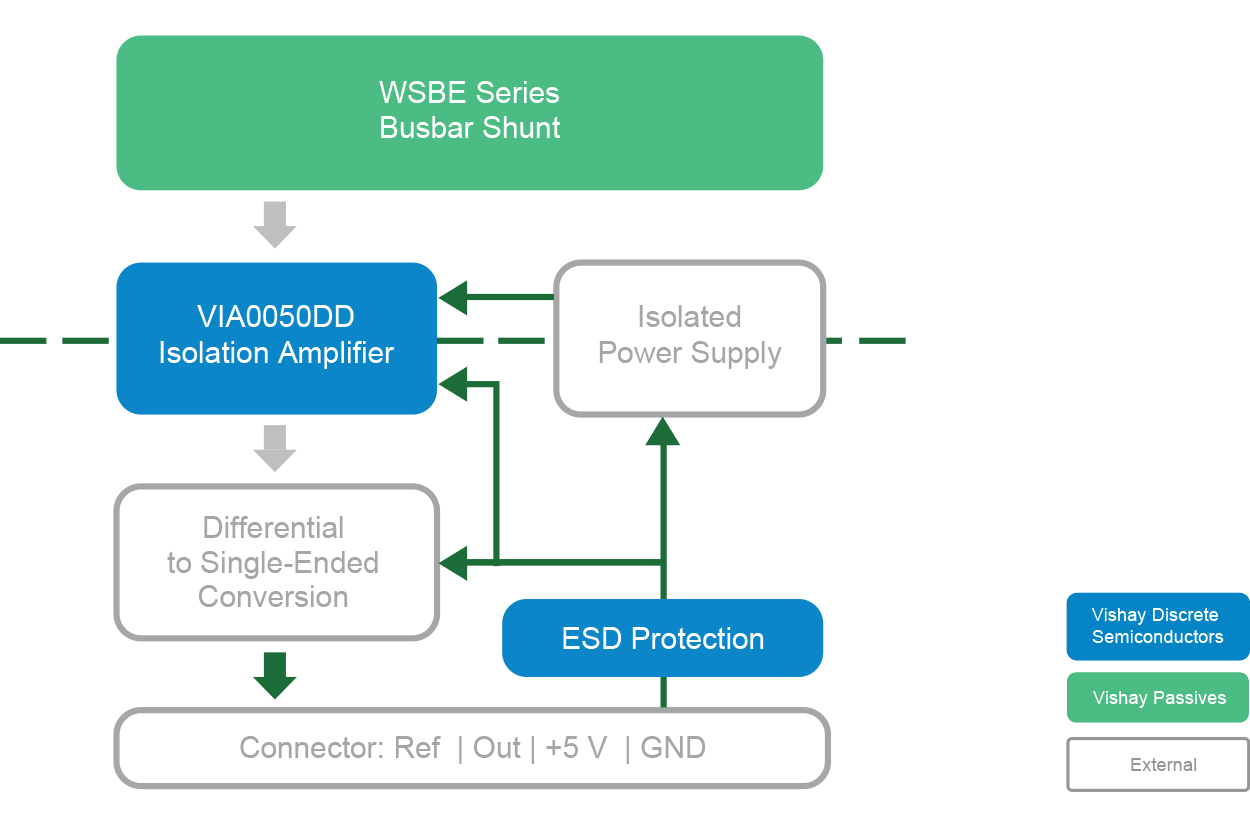

Functional Block Diagram

Slider

Features

AC current measurement up to 1415 A

Maximum working isolation voltage of 1200 VRMS

Isolated single-ended analog output

Low temperature offset and gain drift

Bandwidth of approx. 280 kHz

Products

  • Resistor:WSBE

    Power Metal Strip® Shunt Resistor, Low TCR (Down to < ± 10 ppm/°C), Very Low Value (Down to 15 µΩ)
