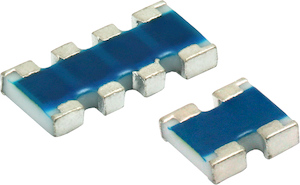

ACAS 0606 AT, ACAS 0612 AT - Precision PRODUCT INFORMATION

Precision Thin Film Chip Resistor Array Superior Moisture Resistivity
Automotive Grade Logovsh-img-product-image

FEATURES

Superior moisture resistivity, |ΔR/R| < 0.5 %   (85 °C; 85 % RH; 1000 h)
Rated dissipation P70 up to 125 mW per resistor
ESD stability 1000 V, human body model

APPLICATIONS

Automotive
Industrial equipment
Precision analogue circuits
