RCV e3 PRODUCT INFORMATION

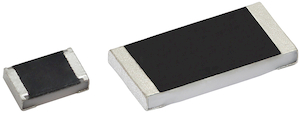

High Voltage (Up to 3 kV) Thick Film Chip Resistors
vsh-img-product-image

FEATURES

High operating voltage (up to 3 kV)
Low voltage coefficient of resistance (VCR): 25 ppm/V
UL 1676 recognition for RCV2010 e3 and RCV2512 e3 only; UL file no. E526561

APPLICATIONS

E-meter
Inverters for industrial drives, aircons, and white good
AC power supplies
