GDMQ PRODUCT INFORMATION

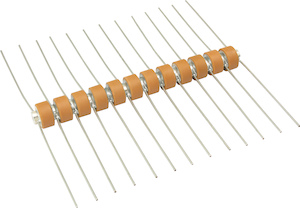

High Voltage Ceramic Capacitor Stacks, With Leads, Class 2 Ceramic
vsh-img-product-image

FEATURES

Small size
Multiple designs up to 12 stages
Voltage ratings of the individual discs from 8 kVDC to        10 kVDC

APPLICATIONS

Ceramic capacitor stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.
