GFMQ, GFWQ PRODUCT INFORMATION

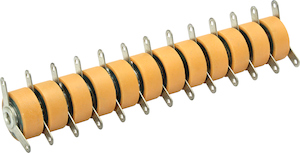

High Voltage Ceramic Capacitor Stacks, with Solder Tags, Class 2 Ceramic
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Small size
Multiple design up to 12 stages
Voltage rating of the individual discs 8 kVDC

APPLICATIONS

Ceramic capacitor stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.
