Metallized Polypropylene Film Capacitor Radial AC and Pulse Capacitor


Mounting: radial


Oscillator, timing, and LC/RC filter circuits, high frequency coupling / decoupling, sample and hold circuits.

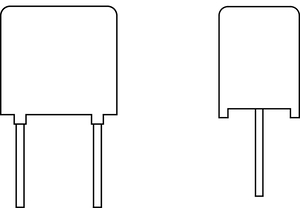

For the maximum product dimensions and maximum space requirements for length (lmax.), width (wmax.) and height (hmax.) following tolerances must be taken in account in the envelopment of the components as shown in the drawings below:
For products with pitch ≤ 15 mm, Δw = Δl = 0.3 mm and Δh = 0.1 mm
