SOMC PRODUCT INFORMATION

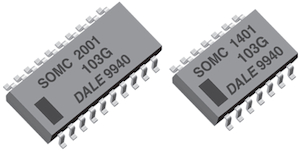

Thick Film Resistor Networks, Dual-In-Line, Medium Body, Small Outline, Molded DIP, Surface Mount
vsh-img-product-image

FEATURES

14,16 or 20 terminal package
Isolated, bussed or TTL-terminator circuits
Molded case construction

APPLICATIONS

13,15, or 19 resistors with one pin common
TheSOMCxx01 circuit provides a choice of 13, 15, or 19 nominally equal resistors, each connected between a common lead (14, 16, or 20) and a discrete PC board pin. Commonly used in the following applications:
7,8, or 10 isolated resistors
