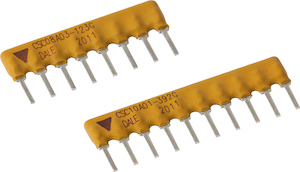

Thick Film Resistor Networks, Single-In-Line, Conformal Coated SIP
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Isolated, bussed and dual terminator schematics available
Body height: “A” profile = 0.195" (4.95 mm) and “B” profile = 0.295" (7.50 mm) standard; custom “C” profile = 0.350" (8.89 mm) also available
“A” profile standard in 4 thru 12 pins

APPLICATIONS

TheCSCxxx01 single-in-line resistor networks provide the user with nominally equal resistors, each connected to a common pin (pin no. 1). Commonly used in the following applications:
“WiredOR” pull-up • Open collector pull-up
Powergate pull-up • TTL input pull-down


Showing 1 to 11 of 11 entries
