DFM (Military M83401/03) PRODUCT INFORMATION

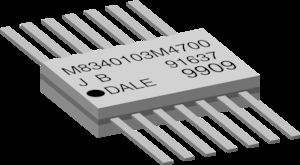

Thick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ030, Flat Pack
vsh-img-product-image

FEATURES

11, 12, 15 Schematics; hot-solder dipped
MIL-PRF-83401 qualified
Thick film resisitive elements
