IHLP-2525CZ-L1 PRODUCT INFORMATION

IHLP® Tin / Lead Inductors, High Saturation Series

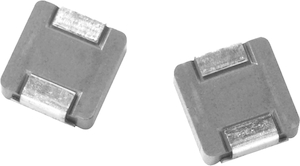

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Lowest height (3.0 mm) in this package footprint
Shielded construction
Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)

APPLICATIONS

PDA / notebook / desktop / server applications
High current POL converters
Low profile, high current power supplies


Showing 1 to 4 of 4 entries
Document TypeTitleDescriptionShare
Application Notes
Vishay Qualification Testing - Automotive Grade Inductors
share
Application Notes
MIL-PRF-27F - Temperature Rise for Inductors
share
Datasheet
IHLP® Tin / Lead Inductors, High Saturation Series
share
Support Tools
Power Inductors
share
