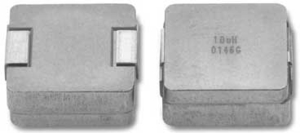

IHLP-5050EZ-A1 PRODUCT INFORMATION

IHLP® Automotive Inductors, High Saturation Series
Automotive Grade Logovsh-img-product-image

FEATURES

Shielded construction
Frequency range up to 5.0 MHz
Lowest DCR/µH, in this package size

APPLICATIONS

Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment / navigation systems
