IHLP-6767GZ-11 PRODUCT INFORMATION

IHLP® Commercial Inductors, Low DCR Series

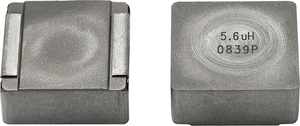

vsh-img-product-image

FEATURES

Shielded construction
Excellent DC/DC energy storage up to 1 MHz to 2 MHz filter inductor applications up SRF (see “Standard Electrical Specifications” table)
Lowest DCR/µH, in this package size

APPLICATIONS

PDA / notebook / desktop / server applications
High current POL converters
Low profile, high current power supplies
