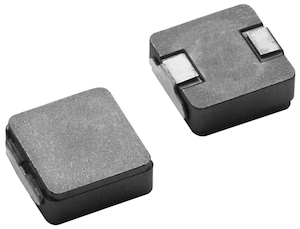

IHLP-4040DZ-5A PRODUCT INFORMATION

IHLP® Automotive Inductors, High Temperature (155 °C) Series
Automotive Grade Logovsh-img-product-image

FEATURES

High temperature, up to 155 °C
10.8 mm x 10.2 mm x 4.0 mm SMD package
Magnetically shielded construction

APPLICATIONS

Engine and transmission control units
DC/DC converters for infotainment, navigation systems, lighting
Noise suppression and filtering
