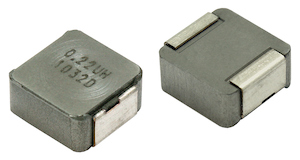

IHLP-3232DZ-5A PRODUCT INFORMATION

IHLP® Automotive Inductors, High Temperature (155 °C) Series
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Shielded construction
Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)
Operating temperature up to 155 °C

APPLICATIONS

Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment / navigation systems
