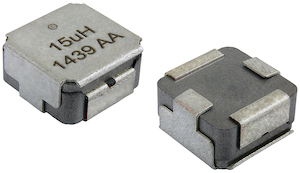

IHLE-3232DD-5A PRODUCT INFORMATION

IHLE® High Current Inductors With E-Field Shield
Automotive Grade Logovsh-img-product-image

FEATURES

High temperature, up to 155 °C
Integrated E-Shield for maximum EMI reduction (1)
Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see standard electrical specifications table)

APPLICATIONS

Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment / navigation systems
