EB4 PRODUCT INFORMATION

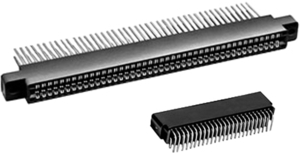

Edgeboard Connectors, Dual Readout, 0.100" (2.54 mm) C-C, Standard and Right Angle Terminals
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Grid patterns: 0.100" C-C x 0.150" (2.54 mm x 3.81 mm) and 0.100" C-C x 0.200" (2.54 mm x 5.08 mm)
Standard and right angle terminals
Greater design latitude: body materials: glass-filled polyester and glass-filled polyphenylene sulfide 7 contact termination styles - 3 standard, 4 right angle 20 body sizes and 6 mounting styles

APPLICATIONS

For use with 0.0625" (1.59 mm) printed circuit boards requiring an edgeboard type connector on 0.100" (2.54 mm) centers
