P11S, P11A PRODUCT INFORMATION

12.5 mm Modular Panel Potentiometer Cermet (P11S) or Conductive Plastic Elements (P11A)

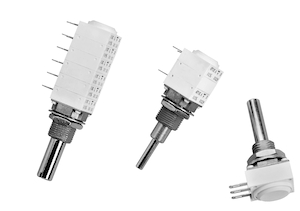

vsh-img-product-image

FEATURES

12.5 mm square single turn panel control
Five shaft diameters and 29 terminal styles
Multiple assemblies - up to seven modules
