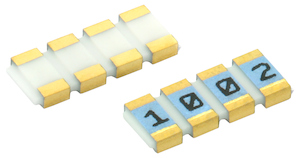

High Temperature (230 °C) High Precision Thin Film Wraparound Chip Resistor Arrays, Sulfur Resistant


Tight TCR (10 ppm/°C) and TCR tracking        (to 2 ppm/°C)
2 to 4 resistors (same or different values)
Ratio tolerance to 0.05 %


PRAHTarrays can be used in most applications requiring a matched pair (or set) of resistor elements at very high temperature up to 230 °C. The networks provide 2 ppm/°C TCR tracking, a ratio tolerance as tight as 0.05 % and outstanding stability. They are available in pitch:
100 mm for PRAHT 100 (based on case 0603)
135 mm for PRAHT 135 (based on case 0805)
