E/H (Military M/D55342) PRODUCT INFORMATION

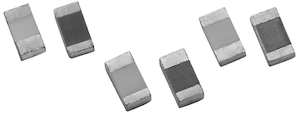

QPL MIL-PRF-55342 Qualified Thin Film Resistor, Surface-Mount Chip
vsh-img-product-image

FEATURES

Established reliability, “S” and “V” failure rate level (10 ppm), C = 2
High purity alumina substrate
Wraparound termination featuring a tenacious adhesion layer covered with an electroplated nickel barrier layer for  +150 °C operating conditions
