RMKHT (CNHT) PRODUCT INFORMATION

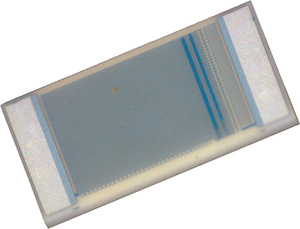

High Temperature (230 °C) Wirebondable Thin Film Chip Resistors and Resistor Networks
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Operating temperature range: -55 °C; +215 °C
Storage temperature: -55 °C; +230 °C
Wirebondable (aluminum pads)

APPLICATIONS

Forapplications such as down hole applications, the need for parts able to withstand very severe conditions (temperature as high as 215 °C powered or up to 230 °C un-powered) has leaded Vishay Sfernice to push out the limit of the thin film technology.Designers might read the application note “Power Dissipation Considerations in High Precision Vishay Sfernice Thin Film Chip Resistors and Arrays                     (P, PRA, etc…) (High Temperature Application)” www.vishay.com/doc?53047 in conjunction with this datasheet to help them to properly design their PCBs and get the best performances of the RMKHT.Vishay Sfernice research and development engineers will be willing to support any customer design considerations.
Forohmic range vs. tolerance and TCR see detailed table on next page.
TemperatureCoefficient of Resistance
