CC5- PRODUCT INFORMATION

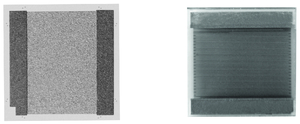

Thin Film 1010 Size Resistor on Alumina
vsh-img-product-image

FEATURES

Wire bondable
Chip size: 0.100 inches square
Case: 1010

APPLICATIONS

Vishay EFI CC5- chip resistors have excellent power dissipation capability and are ideally suited for prototyping. Not suitable for high moisture applications unless protected.
Typical application areas are:
Amplifiers
