SFX PRODUCT INFORMATION

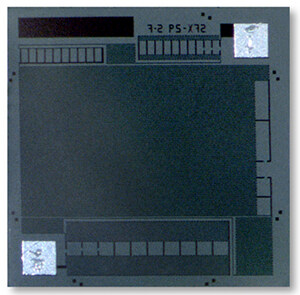

Thin Film, Top-Contact Megohm Resistor
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Wire bondable
Megohm resistance range: 0.51 MΩ to 20 MΩ
Chip size: 0.040 inches square standard, 0.030 inches square and 0.055 inches square optional

APPLICATIONS

The SFX series megohm resistor chips are designed for use in hybrid packages which require small-size high-value resistors.
