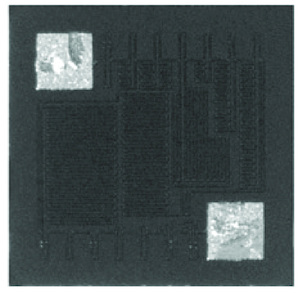

NiCr Thin Film, Top-Contact Resistor


Wire bondable
Chip size: 0.020" square
Case: 0202


Vishay EFI SFN resistor chips are widely used in hybrid packages where space is limited. Designed with capacity to handle substantial power loads, they also have the benefit of nichrome stability.
Recommended for hermetic environments where die is not exposed to moisture.
