VOM3052, VOM3053 PRODUCT INFORMATION

Optocoupler, Phototriac Output, Non-Zero Crossing, 1.5 kV/µs dV/dt, 600 V

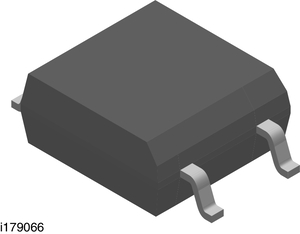

vsh-img-product-image

FEATURES

High static dV/dt > 1.5 kV/µs
Input sensitivity IFT = 5 mA and 10 mA
On-state RMS current IT(RMS) = 70 mA

APPLICATIONS

Consumer appliances
Triac drives
Solid-state relays
