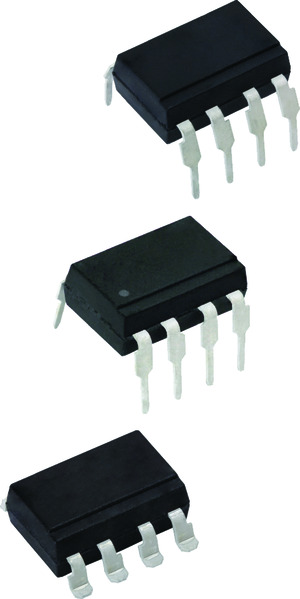

6N137, VO2601, VO2611 PRODUCT INFORMATION

High Speed Optocoupler, 10 MBd
vsh-img-product-image

FEATURES

The 6N137, VO2601, VO2611 are single channel 10 MBd optocoupler utilizing a high efficient input LED coupled to a high speed integrated photo-detector logic gate with a strobable output. This detector features an open drain output.
Common mode rejection (CMR) of 15 kV/µs
LVTTL/LVCMOS compatibility

APPLICATIONS

Microprocessor system interface
Ground loop elimination
Digital bus systems isolation
