SiHJ690N60E PRODUCT INFORMATION

E Series Power MOSFET

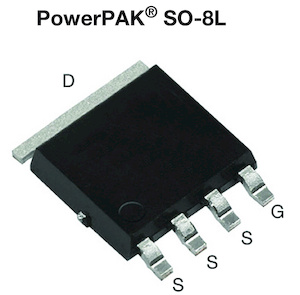

vsh-img-product-image

FEATURES

4th generation E series technology
Low figure-of-merit (FOM) Ron x Qg
Low effective capacitance (Co(er))

APPLICATIONS

Switch mode power supplies (SMPS)
Flyback converter
Lighting
