VS-40TPS...-M3 Series PRODUCT INFORMATION

Thyristor High Voltage, Phase Control SCR, 40 A

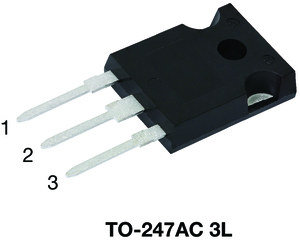

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Designed and qualified according to JEDEC®-JESD 47
Low IGT parts available
125 °C max. operating junction temperature

APPLICATIONS

Typical usage is in input rectification crowbar (soft start) and AC switch motor control, UPS, welding and battery charge


Showing 1 to 4 of 4 entries
Document TypeTitleDescriptionShare
Datasheet
Thyristor High Voltage, Phase Control SCR, 40 A
share
Markings
TO-247
share
Package Drawings
TO-247AC 3L
share
Product Literature
Surface-Mount and Through-Hole Phase Control Thyristors, AEC-Q101 Qualified Available
share
