VS-25TTS08-M3, VS-25TTS12-M3 PRODUCT INFORMATION

Thyristor High Voltage Phase Control SCR, 25 A
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Designed and qualified according to JEDEC®-JESD 47
125 °C max. operating junction temperature

APPLICATIONS

Typical usage is in input rectification crowbar (soft start) and AC switch in motor control, UPS, welding, and battery charge.


Showing 1 to 4 of 4 entries
Document TypeTitleDescriptionShare
Datasheet
Thyristor High Voltage Phase Control SCR, 25 A
share
Markings

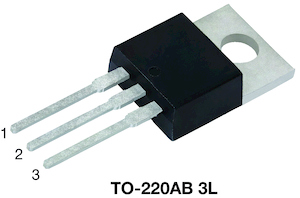

TO-220AB 3L
share
Package Drawings
TO-220AB 3L
share
Product Literature
Surface-Mount and Through-Hole Phase Control Thyristors, AEC-Q101 Qualified Available
