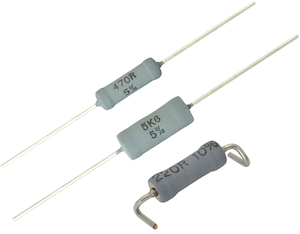

High Surge Axial Cemented Leaded Wirewound Resistors


Flameproof: non-flammable silicone cement coating conforming to UL 94 V-0
High impulse voltage withstanding capability up to 12 kV according to IEC 61000-4-5 (1.2 / 50 μs pulse shape)
High grade ceramic core


Energy meter
