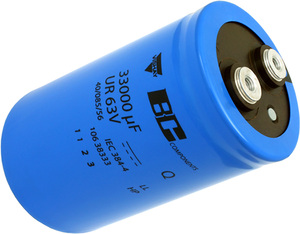

106 PED-ST PRODUCT INFORMATION

Aluminum Electrolytic Capacitors, Power Eurodin, Screw Terminals
vsh-img-product-image

FEATURES

Very long useful life: 20 000 h at 85 °C
Extremely low ESR and ESL allowing very high ripple current load
High resistance to shock and vibration

APPLICATIONS

Computer, telecommunications, and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
