196 HVC ENYCAP™ PRODUCT INFORMATION

Hybrid Energy Storage Capacitors
vsh-img-product-image

FEATURES

Polarized energy storage capacitor with high capacity and energy density
Voltage flexibility: 1.4 V (single cell) to 2.8 V /     4.2 V / 5.6 V / 7.0 V / 8.4 V (multiple cells)

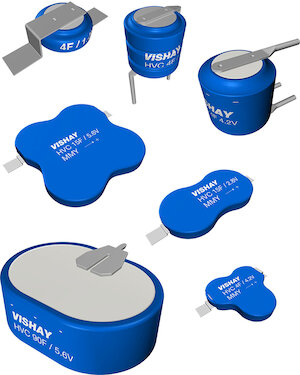

Available in stacked through-hole (STH, radial), surface-mount flat (SMF) and lay flat configurations (LFC) with wire and connectors

APPLICATIONS

Power backup for memory controller, flash backup, RAID systems, SRAM, DRAM
Power failure and write cache protection for enterprise SSD and HDD
Real time clock power source
