ACAS 0612 - Precision PRODUCT INFORMATION

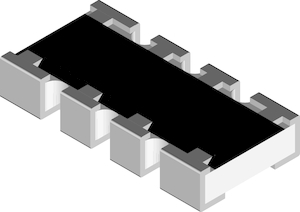

Precision Thin Film Chip Resistor Array
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Advanced thin film technology
Two pairs or four equal resistor values
Relative TCR down to ± 5 ppm/K (tracking)

APPLICATIONS

Precision analogue circuits
Voltage divider
Feedback circuits
