PTCCL - 600 V / 1000 V Series PRODUCT INFORMATION

600 V to 1000 V PTC Thermistors for Overload Protection

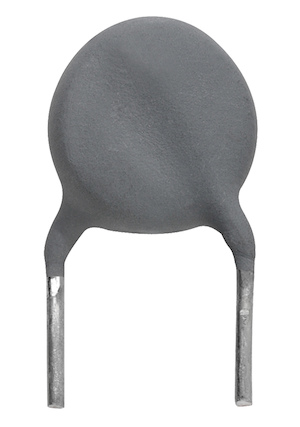

vsh-img-product-image

FEATURES

Fast response time for rapid protection
Automatic resetting once overload is removed
Operates on DC or AC voltage

APPLICATIONS

Over-temperature/over-load protection for metering, low current signal protection, digital signal protection against over-voltage
