WSBS8518…P4 PRODUCT INFORMATION

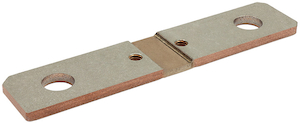

Power Metal Strip® Battery Shunt Resistor With M4 Tapped Holes and Sn Plated Terminals, Very Low Value (50 µΩ, 100 µΩ, 125 µΩ, and 250 µΩ)
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

High power to resistor size ratio
Proprietary processing technique produces extremely low resistance values
Tapped holes aid in PCB mounting and / or a location to attach voltage sense pins


Showing 1 to 4 of 4 entries
Document TypeTitleDescriptionShare
Datasheet
Power Metal Strip® Battery Shunt Resistor With M4 Tapped Holes and Sn Plated Terminals, Very Low Value (50 µΩ, 100 µΩ, 125 µΩ, and 250 µΩ)
