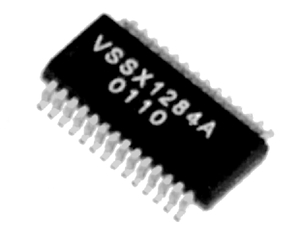

VSSX1284 PRODUCT INFORMATION

25 mil Pitch, IEEE 1284 Termination Thin Film Surface Mount Resistor, Capacitor, Diode Network
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

One sophisticated, integrated Thin Film technology solution
Up-graded IEEE 1284 parallel port termination, pull-up with the addition of diodes for filtering on the parallel port
Standard QSOP package (28 pins) - JEDEC MO-137AF
